Paper: DSCC-15 Topic: VHDL programs

You may copy and execute the codes in an offline VHDL simulator like ModelSim or an online simulator like EDA Playground. Don't forget to rename the file extensions as '.vhd' from '.txt'. You may also use Intel Quartus Prime Lite Edition to design and simulate the results using its waveform generator. Try to understand each line of the programs by relating them to the concepts learnt in the class.

Logic Gates

Half-adder

Full-adder

4x1 Multiplexer

3x8 Decoder

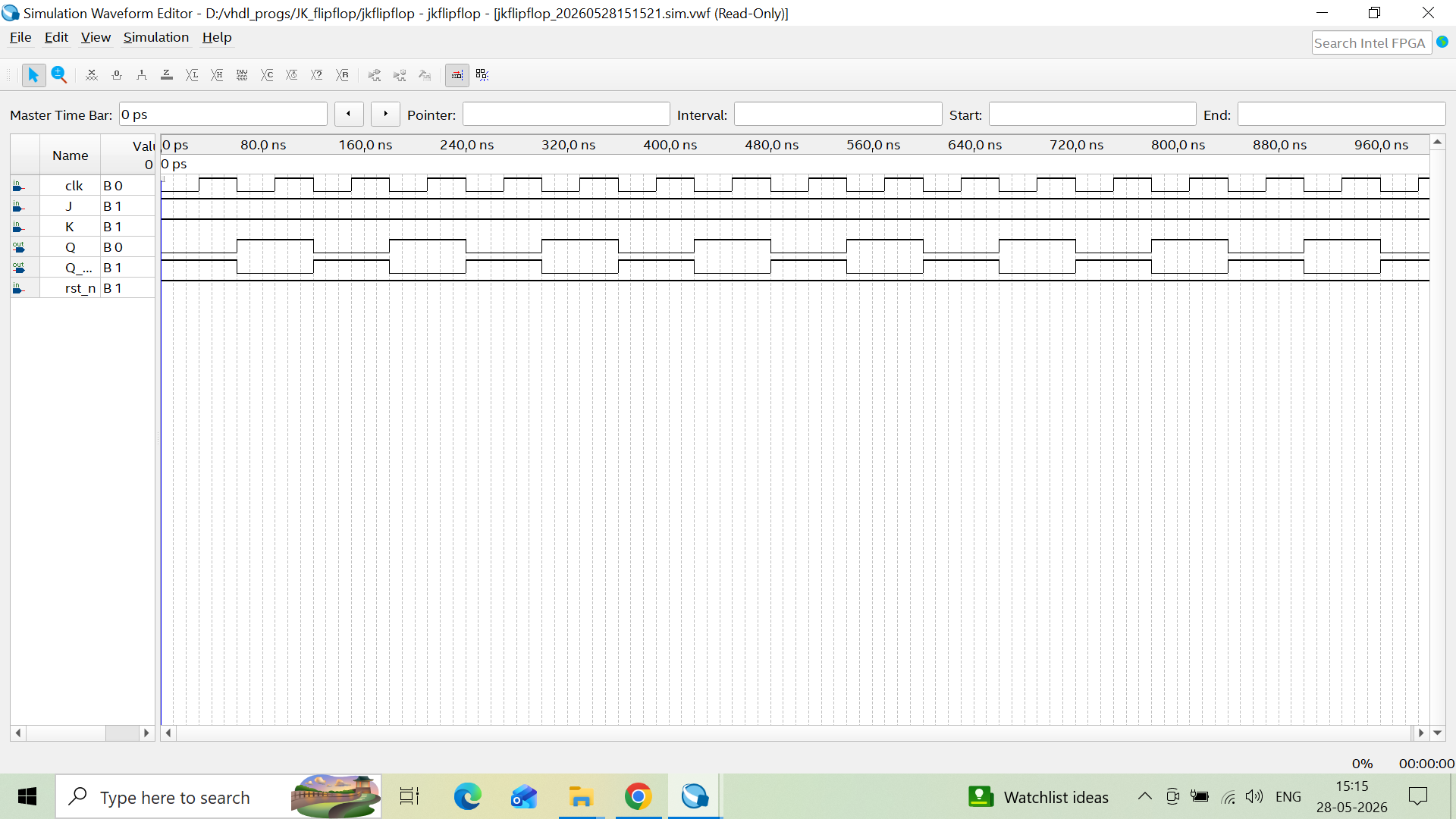

J-K flip flop

Paper: DSCC-15 Topic: VLSI experiments

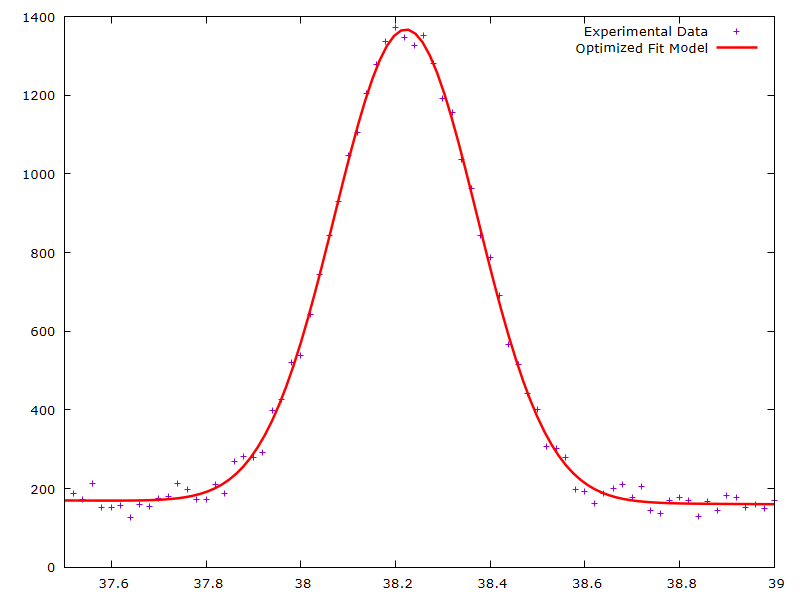

Crystallographic Analysis and Particle Size Determination by X-Ray Diffraction (XRD) (of the given XRD Spectra stored in a csv file). The XRD data may also be synthetically generated using Gemini. The data is plotted using a Graph plotting and analyzing tool like Gnuplot or Origin, then the data corresponding to a single peak is separately fitted to a Gaussian curve, from which rest of the analysis follows.

Simulating the thermal oxidation process in VLSI using Scilab and the Deal-Grove model.
